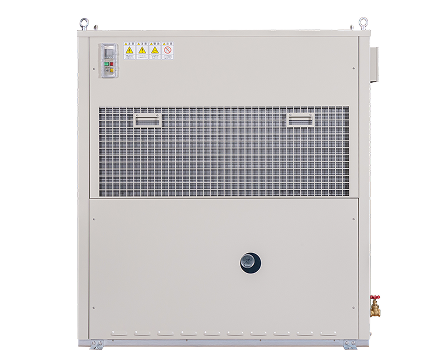

Medium Air-Cooled Chillers

Features

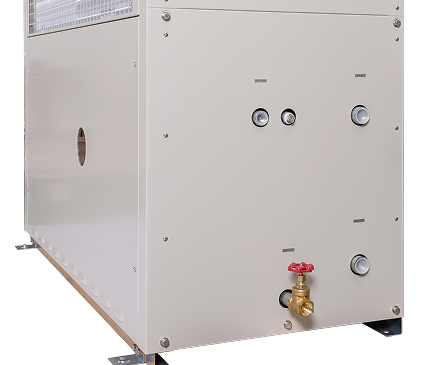

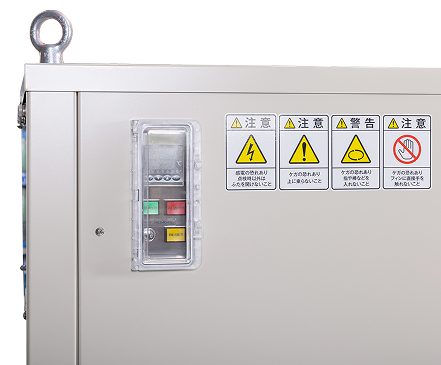

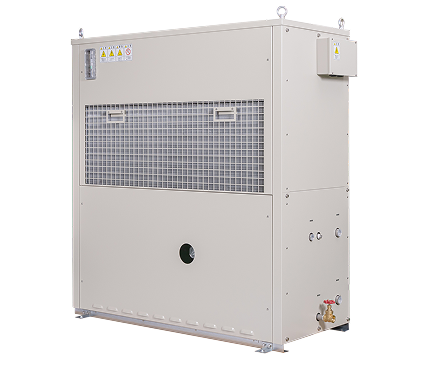

This is our flagship product, holding a high market share for MRI-use chillers in Japan. It offers a wide range of optional features, allowing operation tailored to your installation environment. Inverter control ensures operation at the minimum required power, and a remote-control panel for remote operation comes standard.

Specifications

Cooling Capacity：4.3～18.0kW
Operating Temperature Range：15℃～25℃
Temperature Control Accuracy：±0.2
Dimensions(W × D × H)：1391mm×606mm×1503mm

Optional Accessories

Mist device, snow-prevention hood, exhaust hood, high-lift pump, soundproofing measures, anti-vibration stand, high-temperature specification (up to 50°C)

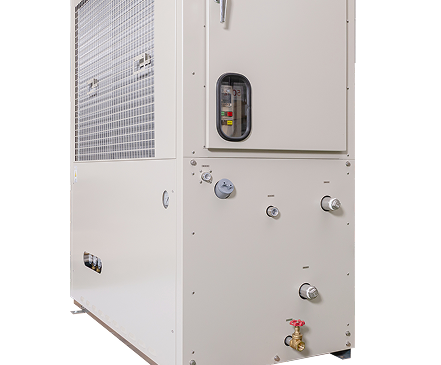

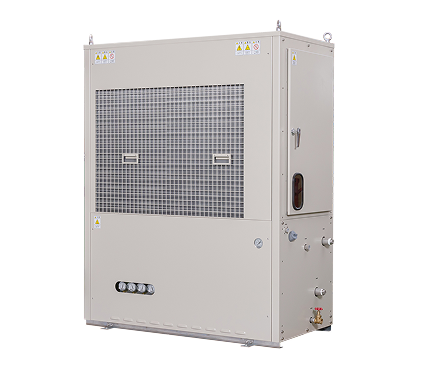

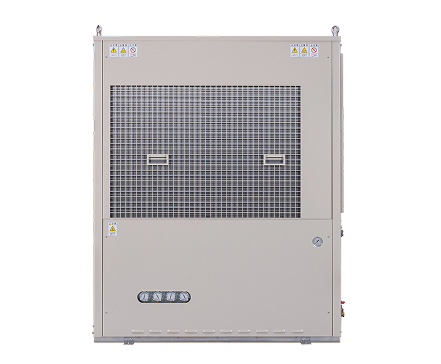

Features

It can be operated according to the installation environment. Equipped with inverter control, it operates using the minimum required power.
A remote-control panel is provided as standard.

Specifications

Cooling Capacity：2.5～35.0kW
Operating Temperature Range：10℃～25℃
Temperature Control Accuracy：±1.0
Dimensions(W × D × H)：1542mm×736mm×1910mm

Optional Accessories

Mist device, snow-prevention hood, exhaust hood, high-lift pump, soundproofing measures, anti-vibration stand

Features

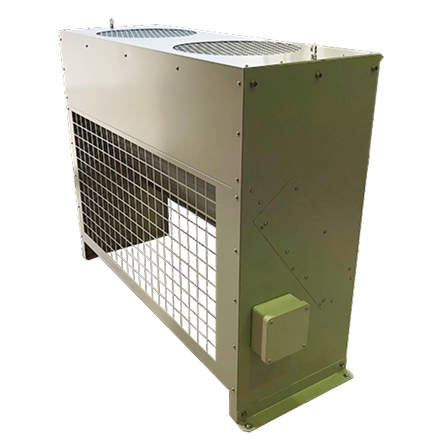

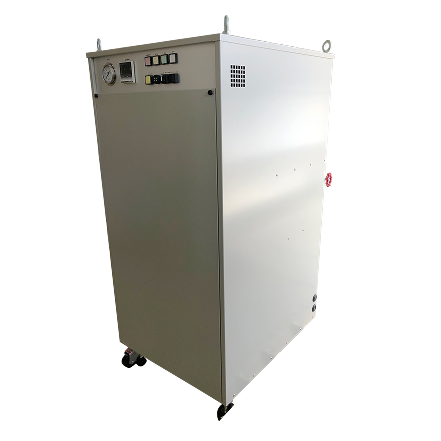

By separating the condenser from the chiller unit, it can be installed even in harsh environments such as cold regions. Equipped with inverter control, it operates using the minimum required power.

Specifications

Cooling Capacity：4.0～17.5kW
Operating Temperature Range：20℃～25℃
Temperature Control Accuracy：±1.0
Dimensions(W × D × H)：1333mm×490mm×1140mm
　　　　　　　　　　　　   670mm×800mm×1475mm

Optional Accessories

snow-prevention hood, exhaust hood, soundproofing measures
