Cleanroom Accessories

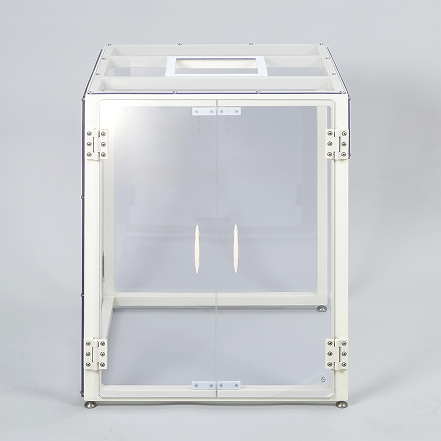

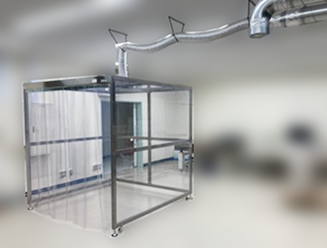

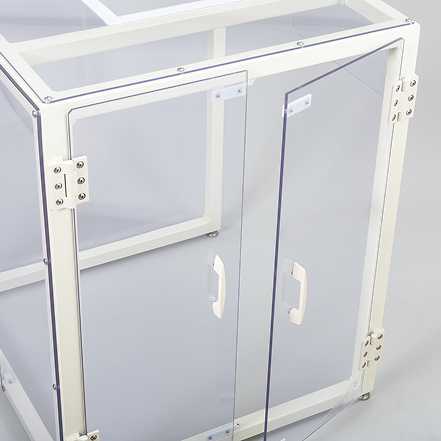

Clean Booth

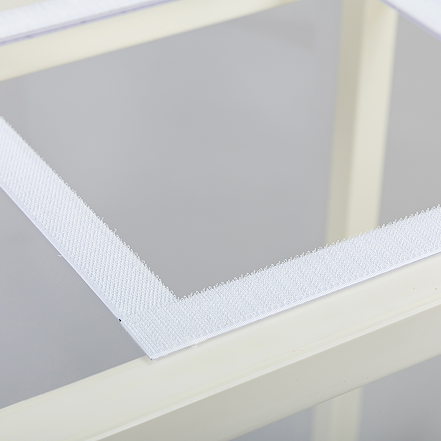

Main Frame: SUS square pipe with ivory PVC coating
Exterior Panel: Transparent
PVC

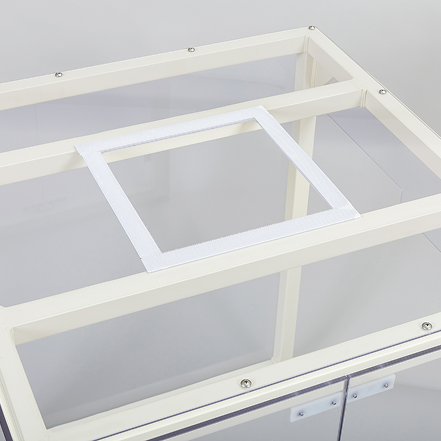

A filter is installed on the top to reduce dust inside the clean booth frame.
The bottom has
a gap of approximately 5 mm, allowing a downflow of air through the opening.
＊Exposed metal parts are
treated with Teflon coating.
＊Customizations are available, including changes to the PVC material,

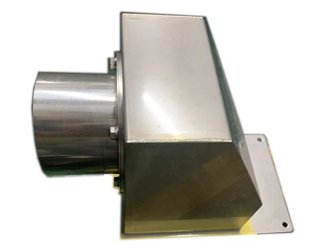

dimensions, door positions, and addition of duct connection chimneys.

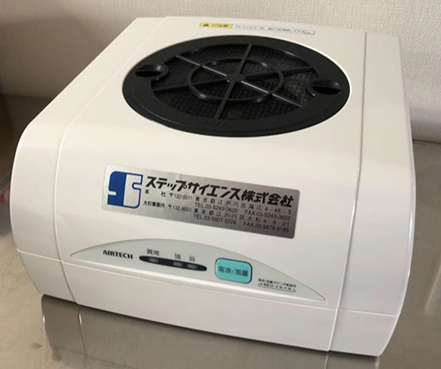

Filter
(Intake from Top, Discharge from Bottom)
Dimensions: W250 × D255.5 × H130 mm
・HEPA Glass Fiber Filter:
Collection efficiency ≥ 99.99% for 0.3 µm particles
・ULPA Glass Fiber Filter:
Collection efficiency ≥ 99.999% for 0.1–0.2 µm particles
・PTFE Fluororesin Filter:
Collection efficiency ≥ 99.9999% for 0.1–0.2 µm particles
Power Supply: AC 100–240 V, 2P with grounding
